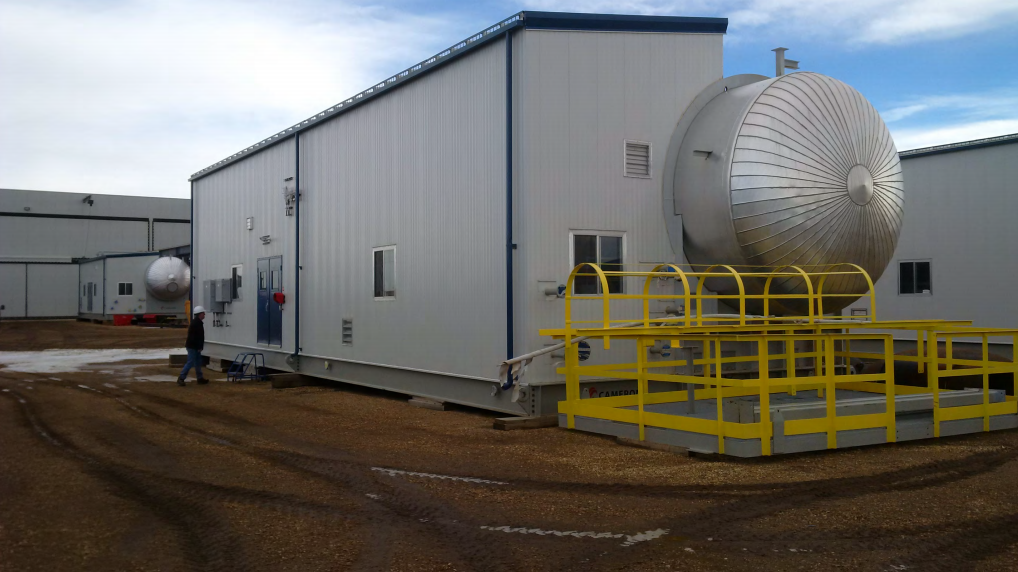

144 X 70ft 75 PSI Dual Polarity Treater

Package Details & Drawings


Listing ID: IH-367
Published

General Info
Packager:
Cameron
Year Built:
2013
Service Type:
Sour
PASC Condition Rating:
A
Condition Details:
New
Skidded:
Yes
Housed:
Yes
Operational Status:
Disconnected
Warranty:
No
Units Available:
2
Treater Info
Treater Type:
Dual Polarity
Vessel Info
Diameter:
144
Vessel Length:
70ft
Vessel Dimensions:
144 X 70ft
Pressure:
75 PSI
Position:
Horizontal
Manufacturer:
Cameron Process Systems
Building / Skid Info
Building Length:
65 ft
Building Width:
12.5 ft
Building Heated:
Yes
Notes:

ELECTRICAL
Package does not currently include final electrical wiring of the equipment, but
can provide this service as an option.

MAJOR DETAILS

  • One (1) 12’ (3658 mm) OD x 70’-0” (21336 mm) S/S Dual Polarity Treater
  • Code ASME SECTION VIII, Div 1 2007 Edition 09 Addenda
  • Design Factor 3.5
  • Design Pressure: 517.1 kPag (75 PSIG)
  • Design Temperature: 175ºC (347F)
  • MDMT -29C (-20F)
  • Corrosion Allowance 3.2mm (0.125”)
  • Inlet deflector
  • Two (2) firetubes, 8.6 MMBTU/hr total duty (approximately 10000 BTU/hr/ft² heat flux)
  • Water outlet vortex breakers
  • Front End degassing section
  • Back end vertical flow coalescing section Dual Polarity Power Unit and Steel Grids c/w One (1) 100 kVa Dual Polarity Power Unit compete with ladder & access platform
  • Manual desludge system
  • Internal distribution system including inlet distributor, spreaders and collector toughs.

See attachements for more details

Financial Info
Availability Status
Available
Location
Nearest Town / City
Frog Lake
Province
AB
Country
Canada
