Description:

1. GE 7EA GTG Packaged Power Plant.

The package comprises the following major components along with all GE scope of supply and auxiliaries:

• Frame 7EA Gas Turbine model PG7001EA (7E.03)

• Dry Low NOx (for DLN 1.0 Combustion System)

• Natural gas single fuel supply

• Output/Heat Rate 87MW and 10,480 btu/kwh at 1916 ft

• Includes GE PIP package (minus Stg 3 Aero), 2055F firing temp.

• Inlet/Exhaust: Pressure drop: 3.5/5.5 inches of H2O

• Design site elevation: approx. 1916ft above sea level.

• Hours: factory test fire only, ie New.

• Control System; MKV1e Speedtronic TMR.

• Generator; GE/Andritz

• Frame: BDAX (Brushless)

• Excitation: GE EX2100

• Terminal Voltage: 13.8Kv (2 pole, 3-phase, Wye conn.)

• Frequency/Power Factor: 60 Hz/0.85 pf

• Rated Output: 86.5 mw/101.8 MVA

• 52G synchronizing breaker compartment included @ 13.8KV incl. all protection relays etc.

• Cooling: Air-cooled.

• Design for Canadian Market. Stored in accordance with GE's storage/preservation requirements.

Additional Options:Combustor Components to be selected and agreed upon between buyer and seller. Contact seller for more information

PRODUCED WATER, Portable

Solar Titan 130 Turbine (with ABB Generator)

Stored and preserved in the original packaging from the manufacturer.
Ready to be delivered today.

Images of installed unit is the twin to the available unit sitting in crates.
Complete data package is available for potential buyers.
See supporting documents for additional information.

ELECTRICAL
Package does not currently include final electrical wiring of the equipment, but
can provide this service as an option.

MAJOR DETAILS

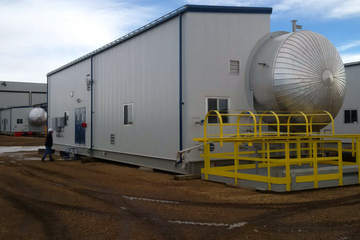

• One (1) 12’ (3658 mm) OD x 70’-0” (21336 mm) S/S Dual Polarity Treater
• Code ASME SECTION VIII, Div 1 2007 Edition 09 Addenda
• Design Factor 3.5
• Design Pressure: 517.1 kPag (75 PSIG)
• Design Temperature: 175ºC (347F)
• MDMT -29C (-20F)
• Corrosion Allowance 3.2mm (0.125”)
• Inlet deflector
• Two (2) firetubes, 8.6 MMBTU/hr total duty (approximately 10000 BTU/hr/ft² heat flux)
• Water outlet vortex breakers
• Front End degassing section
• Back end vertical flow coalescing section Dual Polarity Power Unit and Steel Grids c/w One (1) 100 kVa Dual Polarity Power Unit compete with ladder & access platform
• Manual desludge system
• Internal distribution system including inlet distributor, spreaders and collector toughs.

See attachements for more details
