Separators

1) DC powered light

1) cata-dyne

2) chemical pumps

1) fuel gas scrubber

1) solar panel & battery

One (1) Never Used 20” x 8’ x 720PSI Separator Package

• Manufactured in 2006
• “Alberta Sour” (Sour Welded Gas Line, 2” Lines NPT)
• 3 Phase Dressed 2 Phase
• Liquid Turbine Meters c/w Prover Taps
• AB/BC/SK Registration
• Fuel Gas Scrubbers
• 3” Meter Run
• Catadyne Heaters
• Inlet ESD

24" x 8' Horizontal Inlet Separator Package

Constructed with Alberta, Sask, & BC Registration
100°F design temperature
Inlet diverter and float hood
4” thick x 9 lb/ft3 mistex
Radiography: RT-1,
Designed 3 phase/Dressed 2
Fully Flanged vessel

VESSEL CONNECTIONS:
N1 Gas Inlet 1 - 3” NPS 600 ansi Flange
N2 Gas Outlet 1 - 3” NPS 600 ansi Flange
C1 Drain 1 - 2” NPS 600 ansi Flange
C2 Condensate LLC 1 - 2” NPS 600 ansi Flange
C3 Water LLC 1 - 2” NPS 600 ansi Flange
C4 Condensate Outlet 1 - 2” NPS 600 ansi Flange
C5 Water Outlet 1 - 2” NPS 600 ansi Flange
C6 a/b LG - Condensate 2 - 2” NPS 600 ansi Flange
C7 a/b LG - Water 2 - 2” NPS 600 ansi Flange
C8 PI 1 - 2” NPS 600 ansi Flange
C9 TI 1 - 2” NPS 600 ansi Flange
C10 PSV 1 - 2” NPS 600 ansi Flange
C11 Inspection 2 - 2” NPS 600 ansi Flange

SENIOR METER RUN C/W FLOW CONDITIONER
3” 600# Flanged outer ends, Sch 80
SOUR. Service trim
10% Radiography
Built to AGA 2000 Edition
One (1) - 1” 3000# T.O.L. and one (1) 3/4” 3000# T.O.L. downstream

Internall Coated Devoe 259

Last inspection - 2011.  Reports available upon request.

With Water Boot

Comes complete with Accompanying MCC Building 800AMP

Full sour, pipe & vessel. No T.O.L’s on pipe or vessel.

BPCV & bypass flow line on sales gas from vessel.

Micro Motion fluid measurement.

HazLoc electric heater.

2 exhaust fans, 1 in roof eave, 1 at floor level.

Gas & H2S detection.

Wired to J.B.’s.

Eagle, 3 throw/single stage air comp.

Pig launcher outside.

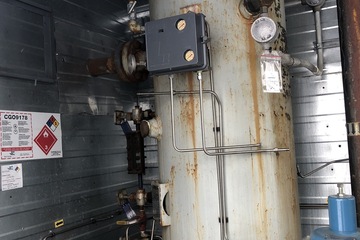

One 36” O.D. x 7’6” S/S x 1440# D.P.

1/8” Corrosion Allowance @ -20/100 Deg. F, 3 Phase Vertical Separator constructed to ASME code Section VIII Div. I., RT1 X-Ray & stress relieved

Please see supporting documents for more details.

• Constructed to ASME Section VIII Div I, with CRN Registered in Alberta, B.C.,
• Saskatchewan
• “U” Stamped
• 1/8” Corrosion Allowance
• 100°F Design Temperature
• M.D.M.T.-20°F @ 1440 Psig
• Inlet Diverter, Float Shield
• 6” Thick x 9 lb/ft3 Mistex
• Designed 3 Phase, Dressed 2 Phase

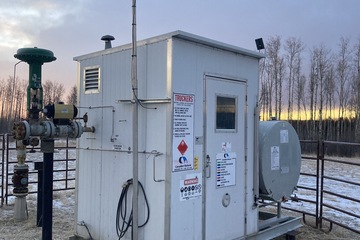

24” X 5’ S/S vertical vessel
2 – Phase nozzles
Manufactured in 2004 by Natco
MAWP: 1440psig @ 100°F design temperature
MDMT: -20°F @ 1440psig
Original Corrosion Allowance: 1/8”
Radiography: RT-1
PWHT: Yes
Soft / Alberta Sour
A# 511658

VESSEL CONNECTIONS:
N1 Inlet 1 - 3” NPS 600 ANSI Flange
N2 Gas Outlet 1 - 3” NPS 600 ANSI Flange
N3 PSV 1 - 1” NPS TOL
N4 PI 1 - 1/2” NPS TOL
N5 TI 1 - 3/4” NPS TOL
N6a/b Water LG 2 - 3/4” NPS TOL
N7 Water LC 1 - 2” NPS TOL
N8 Water Outlet 1 - 2” NPS TOL
N9 HLSD 1 - 2” NPS TOL
N10 Spare 1 - 2” NPS TOL
N12 Drain 1 - 2” NPS TOL

Package Reconditioning specifications include:
- Shop UT and clean out of the pressure vessel
- Shop UT and clean out of original pressure piping
- Function test of all instruments and recondition as necessary
- Pressure test of package
- Re-certification of PSV valves,
- Reconditioned meter run.

48” x 16’ – 1440 PSIG horizontal vessel – Registered in Alberta, BC, & Sask.

20” x 5’ – 2585 PSI blowcase vessel.

Spool for future meter run

4” - BPCV

Sweet fuel gas scrubber

Electric Heater

Skidded & housed.

Located in Central Alberta.

This package was out on rent for 6 years and is still available for rent or purchase.

Process Building

With 100bbl tank
